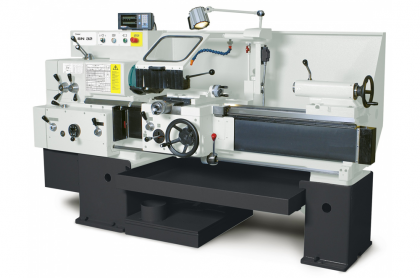

Universal Center Lathes / SN 32
SN 32 is universal centre lathe with main motor output of 4 kW. Wide operating speed range and its unique design ensures high stability during material turning. Suitable also for vocational schools.
Most important features:
- Small dimensions
- Easy maintenance
- Long lifetime
- Low operating costs
- Easy and ergonomic control
- High turning precision
| Swing over Bed | inch | 13 | mm | 330 |
| Swing over Cross Slide | inch | 6.6 | mm | 168 |
| Distance Between Centers | inch | 29.5 - 39.4 | mm | 750 - 1 000 |
| Swing in Gap | inch | 20.5 | mm | 520 |
| Spindle Bore | inch | 2 | mm | 52 |
| Main Motor Power Output | HP | 5.4 | kW | 4 |
| Speed Range | 1/min | 14 - 2 500 | 1/min | 14 - 2 500 |
