CNC Horizontal Lathes / HLC - CNC Horizontal Lathes

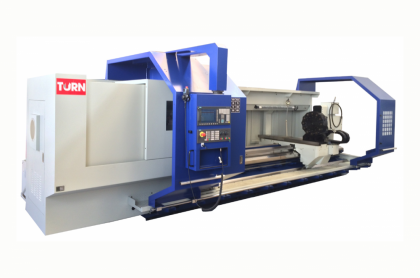

HLC are CNC horizontal lathes. They feature massive cast steel frame, accurate spindle and high quality components being used.

There are 4 type versions being built to satisfy any particular need.

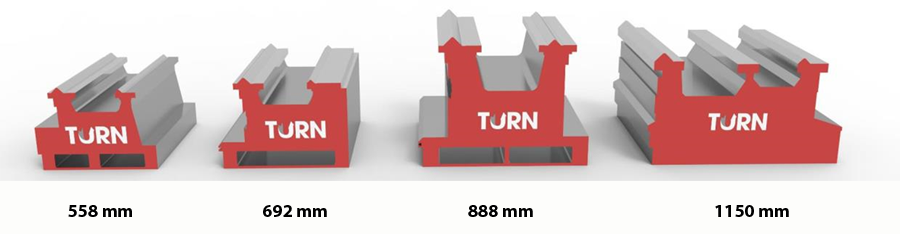

HLM-S      Bed width 558 mm
HLM-M     Bed width 692 mm
HLM-L      Bed width 888 mm
HLM-XL   Bed width 1150 mm

.

Basic Features

  • Swing diameter 760 - 2500 mm
  • Turning length up to 12000 mm
  • Part weight up to 20 000 kg
  • Siemens 828D Control
  • Cast steel bed, hardened sliding guideways
  • Three-step gearbox with pneumatic shifting
  • Cast iron tailstock, rigid quill sleeve
  • Rapid travers on axes X and Z
  • Machine covers
  • Tool holder H4, chip tray, centre MK6
  • Indirect position feedback on axes X and Z

Optional Features

  • Fanuc 0iTD Control
  • Additional axes C and Y
  • Scale position feedback on axes X and Z
  • Revolver turrets
  • Chip conveyor, oil skimmer
  • Oil cooling unit, A/C for main electrical panel
  • Fully enclosed work area, Through spindle cooling
  • Measuring probes
