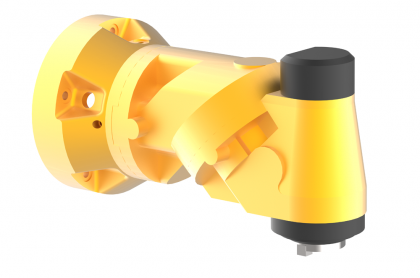

Milling Heads / HUR 50
3,000 R.P.M. / 20 kW / 1,000 Nm
- manually, semi-automatically or automatically fastening on the machine
- manually positioning and clamping
- manually clamping of tools
Suitable for these machines:
- WHN 13 CNC
- WHR 13 CNC
- WHN 130
- WRD 13
- WRD 130/150 CNC
- WRD 170 CNC
- GRATA
- MAXIMA
| Spindle Taper | CAT 50 | ISO-50 | ||
| Spindle Speed Max | 1/min | 3 000 | 1/min | 3 000 |
| Power Transmitted Max. | kW | 20 | kW | 20 |
| Spindle Torque Max. | ftlb | 737.6 | kg | 1 000 |
| Transmission Ratio | 1 : 1 | 1 : 1 | ||
| A-Plane Rotation Range | deg | +/- 360 | deg | +/- 360 |
| B-Plane Rotation Range | deg | +/- 360 | deg | +/- 360 |
| Total Weight | lb | 1764 | kg | 800 |
