Floor Type HBM / RET10P

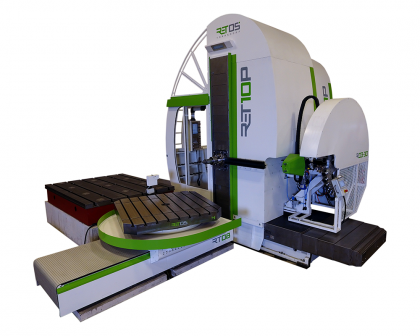

RET10P is a Floor Type Horizontal Boring Mill featuring headstock equipped with travelling ram and quill.
Available milling and facing heads as well as optional ATC, through spindle coolant and further accessories along with attractive price make it real asset for most machine shops.
Equipped with Heidenhain iTNC 530 or TNC 630 Control, Heidenhain drives and SIemens motors
Accessories:
VP170, VP320, VP470 - Spindle supports
HPR-50, FP-40 - Vertical Milling Head (manual)
HUR-50, UFP-40 - Universal Milling Head (manual)
SEMPUCO - Vertical and Universal Milling Head
SEMPUCO - Universal NC Milling Head
COGSDILL - Facing Head
Chip Conveyor
Heidenhain TS 460 Touch Probe
Heidenhain HR 550 FS Wireless Remote Panel
| Headstock | ||||
| Ram cross section | inch | 12.4 x 14.9 | mm | 315 x 380 |
| Spindle diameter | inch | 3.93 / 4.13 | mm | 100 / 105 |
| Clamping taper | CAT 50 | ISO 50 | ||
| Spindle speed range | rpm | 10 - 3500 | rpm | 10 - 3500 |
| Ram stroke Z-axis | inch | 25.6 | mm | 650 |
| Spindle stroke W-axis | inch | 24.0 | mm | 610 |
| Travels | ||||
| Transversal column travel X-axis | inch | 71 - 472 | mm | 1800 - 12000 |
| standard X-axis | inch | 236.2 | mm | 6000 |
| Vertical headstock travel Y-axis | inch | 78.7 | mm | 2000 |
| Table | ||||
| Table clamping surface | inch | 49.2 x 49.2 | mm | 1250 x 1250 |
| optional size | inch | 59.1 x 59.1 | mm | 1500 x 1500 |
| Table load capacity | lbs | 17600 | kg | 8000 |
| Table travel V-axis | inch | 39.4 - 78.7 | mm | 1000 - 2000 |
