New Products / Horizontal Boring Mills

Table Type HBM / RET10X

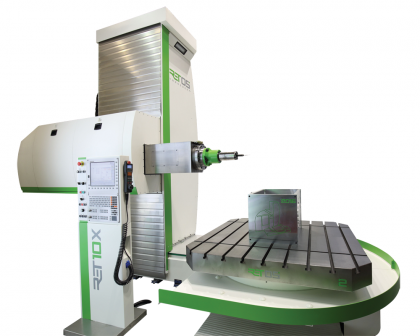

RET10X is a T-Type Horizontal Boring Mill featuring headstock equipped with travelling ram and quill.

Available milling and facing heads as well as optional ATC, through spindle coolant and further accessories along with attractive price make it real asset for most machine shops.
Equipped with Heidenhain iTNC 530 or TNC 630 Control, Heidenhain drives and SIemens motors




Accessories:

VP170, VP320, VP470 - Spindle supports
HPR-50, FP-40 - Vertical Milling Head (manual)
HUR-50, UFP-40 - Universal Milling Head (manual)
SEMPUCO - Vertical and Universal Milling Head
SEMPUCO - Universal NC Milling Head
COGSDILL - Facing Head
Chip Conveyor
Heidenhain TS 460 Touch Probe
Heidenhain HR 550 FS Wireless Remote Panel


Headstock
Ram cross sectioninch12.4 x 14.9mm315 x 380
Spindle diameterinch3.93 / 4.13mm100 / 105
Clamping taperCAT 50ISO 50
Spindle speed rangerpm10 - 3500rpm10 - 3500
Ram stroke - V-Axisinch25.6mm650
Spindle stroke - W-Axisinch24.0mm610
Travels
Transversal table travel X-Axisinch39.4 - 78.7mm1000 - 2000
Longitudinal column travel Z-Axisinch49.2 - 78.7mm1250 - 2000
Vertical headstock travel Y-Axisinch39.4 - 78.7mm1000 - 2000
Table
Table clamping surfaceinch49.2 x 49.2mm1250 x 1250
optional sizeinch59.1 x 59.1mm1500 x 1500
Table load capacitylbs17600kg8000
