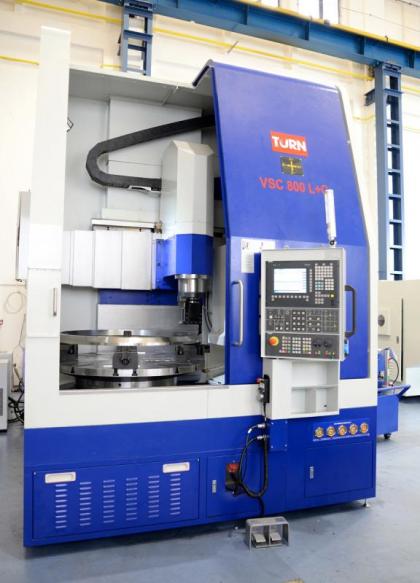

VSC Vertical Lathes / Vertical Lathes VSC
VSC type vertical Lathes are CNC controlled machines, equipped with hydraulic chuck or optional manual clamping plate. Large machining room allows swing 800mm to 1100 mm.
There are three machine size types available:
| VSC | Chuck Diameter |
Max. Swing |
Max. Turning Height |
Max. Part Weight |
Max. Table Speed |
| mm | mm | mm | kg | rpm | |
| S | 380, 610, 810 | 850 | 700 | 1300 | 2200 |
| M | 610, 810 | 950 | 800 | 2000 | 1800 |
| L | 610, 810, 1000 | 1100 | 1000 | 4000 | 800 |
STANDARD FEATURES
- Siemens control and drives
- Hydraulic chuck
- Verical lathes VSC are fully enclosed
- Single cast ribbed column with sliding cross rail
- Machining head fixed to cross rail with SK 50 taper to clamp tool holders
- High machine weight and casting design result in excellent machine rigidity
- 12 or 16 position toolchanger outside of work area
- Chip conveyor
OPTIONAL FEATURES
- Fanuc control and drives
- C-Axis and live spindle
- Y-axis available for sizes S and M
- Pallet changer for size L
- Increased power of main motor
- Different chuck size
- Manual clamping plate instead of chuck
- Through spindle coolant
- Tool and part probe
- Grinding attachment
- Angular head
- Mist collector
