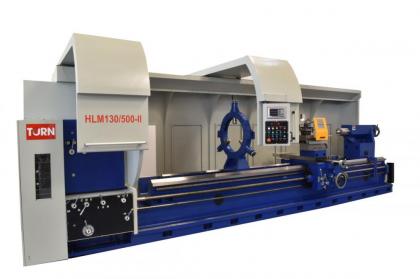

Manual Horizontal Lathes / HLM Horizontal Universal Lathes
HLM are classic manual horizontal lathe. They feature massive cast steel frame, accurate spindle and high quality components being used.
There are 4 type versions being built to satisfy any particular need.
HLM-S Bed width 558 mm
HLM-M Bed width 692 mm
HLM-L Bed width 888 mm
HLM-XL Bed width 1150 mm
.
Standard Features
- Swing diameter 860 - 2000 mm
- Turning length up to 12000 mm
- Part weight up to 22 000 kg
- Cast steel bed, hardened sliding guideways
- 12 step manual gearbox
- Cast iron tailstock, rigid quill sleeve
- Rapid travers on axes X and Z
- Machine covers
- Tool holder H4, chip tray, centre MK6
- Metric and imperial threading, thread dial
- Electromagnetic spindle brake
Optional Features
- Spindle bore from 130 mm up to 410 mm
- Digital readout FAGOR
- Quick change tool heads
- Modern machne covers
- Chip conveyor
- Three-step gearbox with pneumatic shifting and speed selection
Optional Accessories
- Steady rests
- Boring bar holder
- Tailstock pressure gauge
- Real chuck, tailstock chuck
- Spindle speed indicator
- Taper attachment
